| Degree of Freedom |
6 |
| Joint |
Joint |
Max Speed |
| J6 |
±360° |
225°/s |
| J5 |
±360° |
225°/s |
| J4 |
±360° |
225°/s |
| J3 |
±360° |
225°/s |
| J2 |
±360° |
180°/s |
| J1 |
±360° |
180°/s |
| Tool Interface |
GB/T 14468.1-50-4-M6(eqv ISO 9409-1) |
| End Joint I/O |
2 Dig I/O,24V,0.6A |
| Power Supply |
100-240VAC 47-63Hz 10A |
| Power Consumption |
Typical Power Consumption 400W |
| Installation |
Installed in any Direction |
| Ambient Temperature Range |
-10°C-50°C |
| Storage Temperature Range |
-40°C-55°C |
| Robot Dimensions |
1512x388x205mm |
| Robot Package Size |
958x508x516mm |
| Net/Gross Weight |
37.8kg/46kg |
Max Payload 10kg | Reach 1300mm

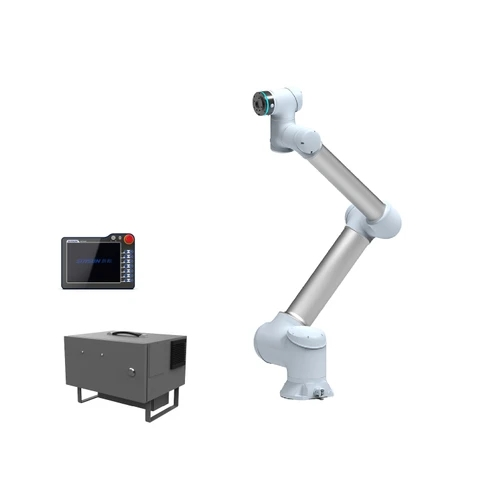

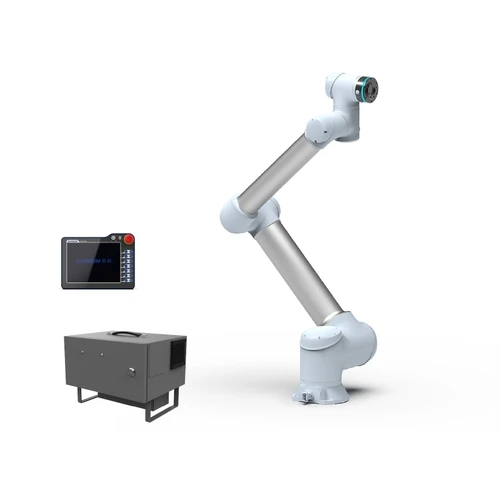

Introducing a high-value, all-new universal collaborative robot that boasts remarkable features such as lightweight design, quick deployment, user-friendly operation, safety, and energy efficiency. It is an ideal choice for achieving efficient and cost-effective operations in factories. With its lightweight construction and small footprint, this product is well-suited for industries such as 3C (Computer, Communication, and Consumer electronics) and automotive.
| Max Payload |
10kg |
| Max TCP Speed |
3.8m/s |
| Max Straight-line speed |
1.5m/s |
| Reach |
1300mm |
| Repeatability |
± 0.03mm |
| IP class |
IP54/IP65 |
| Communication |
Tcp/Ip、Modbus/Tcp、Profinet、Ethernet/Ip |
