| Degree of Freedom |
6 |
| Joint |
Joint |
Max Speed |
| J6 |
±360° |
225°/s |
| J5 |
±360° |
225°/s |
| J4 |
±360° |
225°/s |
| J3 |
±360° |
225°/s |
| J2 |
±360° |
200°/s |
| J1 |
±360° |
200°/s |
| Tool Interface |
GB/T 14468.1-50-4-M6(eqv ISO 9409-1) |
| End Joint I/O |
2 Dig I/O,24V,0.6A |
| Power Supply |
100-240VAC 47-63Hz 10A |
| Power Consumption |
Typical Power Consumption 200W |
| Installation |
Installed in any Direction |
| Ambient Temperature Range |
-10°C-50°C |
| Storage Temperature Range |
-40°C-55°C |
| Robot Dimensions |
1100x330x200mm |
| Robot Package Size |
698x588x450mm |
| Net/Gross Weight |
22kg/30kg |
Max Payload 7kg | Reach910 mm

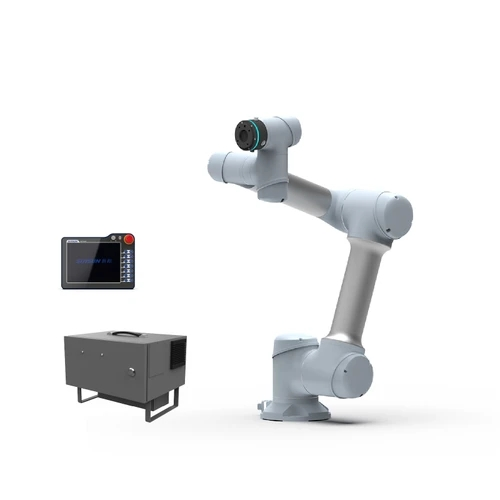

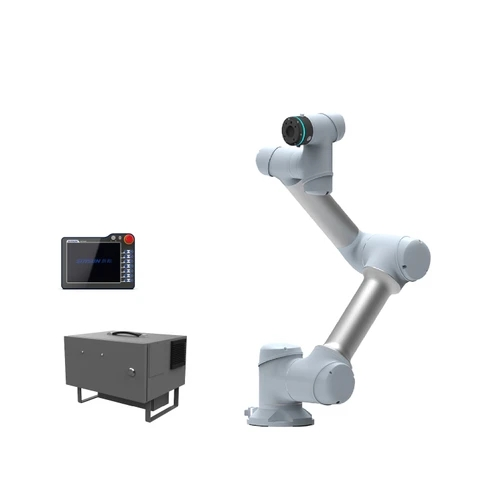

A cost-effective new generation of versatile collaborative robots, featuring lightweight design, quick deployment, easy operation, safety, and energy efficiency, is an ideal choice for achieving high-efficiency and low-cost operations in factories. The product is lightweight, occupies minimal space, and is suitable for industries such as 3C (Computer, Communication, and Consumer Electronics) and automotive.
| Max Payload |
7kg |
| Max TCP Speed |
3.6m/s |
| Max Straight-line speed |
1.5m/s |
| Reach |
917mm |
| Repeatability |
± 0.02mm |
| IP class |
IP54/IP65 |
| Communication |
Tcp/Ip、Modbus/Tcp、Profinet、Ethernet/Ip |
